Vehicle:
Chassis Material 6061 T4 & T6 aluminium alloy
Proces Method Forged under 6,000 tonnes of pressure
Surface Method Anodizing
Headlight LED
Fort Fork Factory ( EVO), M anitou Dorado Expert ( Expert)
Rear Shock Fastace / Talaria Factory / DNM
Wheel Size 19 in. front / rear
Tires FR 70/100-19 / RR 80/100-19 off-road tires
Max Range 120km
Net Weight 66kg with battery
Vehicle Dimensions 1,880 x 770 x 1,088 mm
Seat Height 840 mm
Wheelbase 1,250 mm
Handlebar Length 760 mm
Ground Clearance 300 mm
Key Features:
Battery: 60V 45AH LG cell lithium battery, providing high energy high energy density & omproved range.
Performance: Peak power of 8000W ( 8kW), allowing for top speed of 85 km/h.

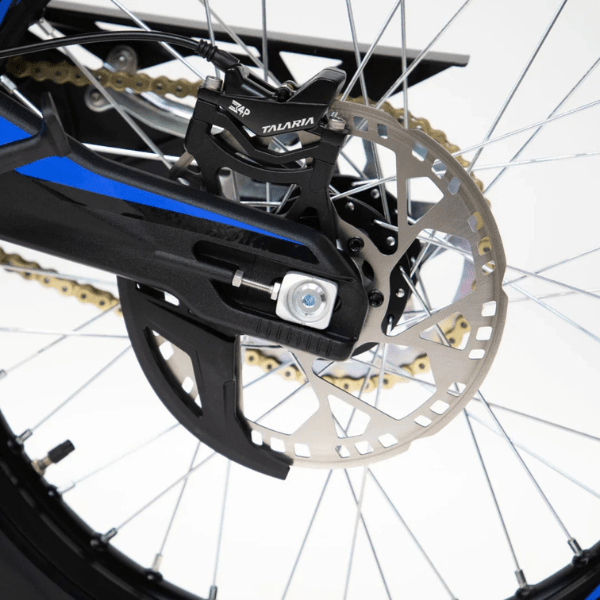

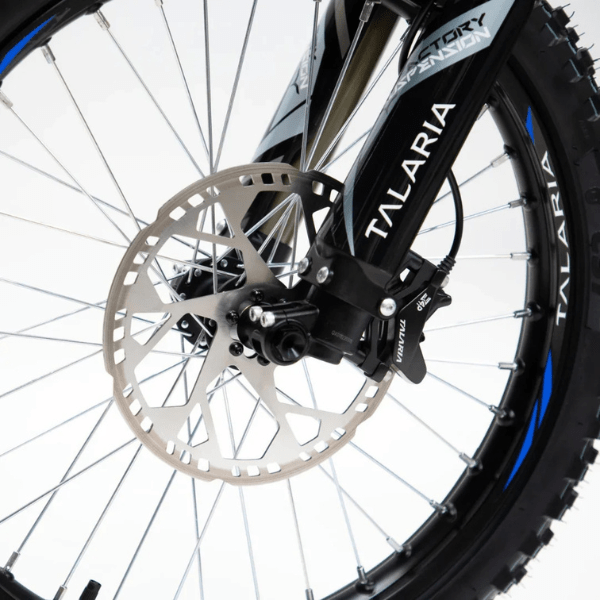

Brakes: 220mm hydrauilc disc brakes (front/rear) with adjustable 4-level regenerative braking.
Drive System: Direct – drive gearbox (no belt!!!) designed for low maintenance & reliability.
Suspension: Often equipped with Fastace or Talaria Factory forks & a rear monoshock.
MX4 vs. Other Models (Pro/Expert):
• The MX4 Pro/Expert versions often include upgrades over the standard
MX4, such as a brighter, centrally mounted TFT display, improved suspension
(e.g. Manitou Dorado Expert fork), Magura brakes & additional CNC – machined components.
• The MX4 provides more power & a higher top speed than the MX3.
Improvements in Recent Models:
Improved Connector: 2023+ models feature a more rebust battery connector.
Gearbox: Strengthened gearbox for more silent & reliable power delivery.
Throttle & Tuning: Enhanced throttle response & power management.
Motor:
Motor Type Air-cooled DC IPM
Mounting Position Mid-mounted
Weight 7.0kg
Motoe Ext. Diameter 180 mm
Controller:
Controller Type FOC
Weight 2kg
Dimension 248mm x 128 mm x 50 mm
Peak Efficiency 92%
Highest Work Temo 100˚
Power:
Nominal Voltage 60V (DC)
Max Speed Fctory Limited to 32km/h
Nominal Torque 50 N.M
Electronic:
Battery Pack 60V 45AH
Battery Size 170 mm x 140 mm x 380 mm
Battery Weight 12.85kg
Display Speed, Battery level, voltage, odometer
Regenerative 4-level adjustment
